SKU: 9DC9DEDBRaspberry Pi Pico 2
Premium quality product with exceptional value
$5.5
Price includes taxFree shipping available

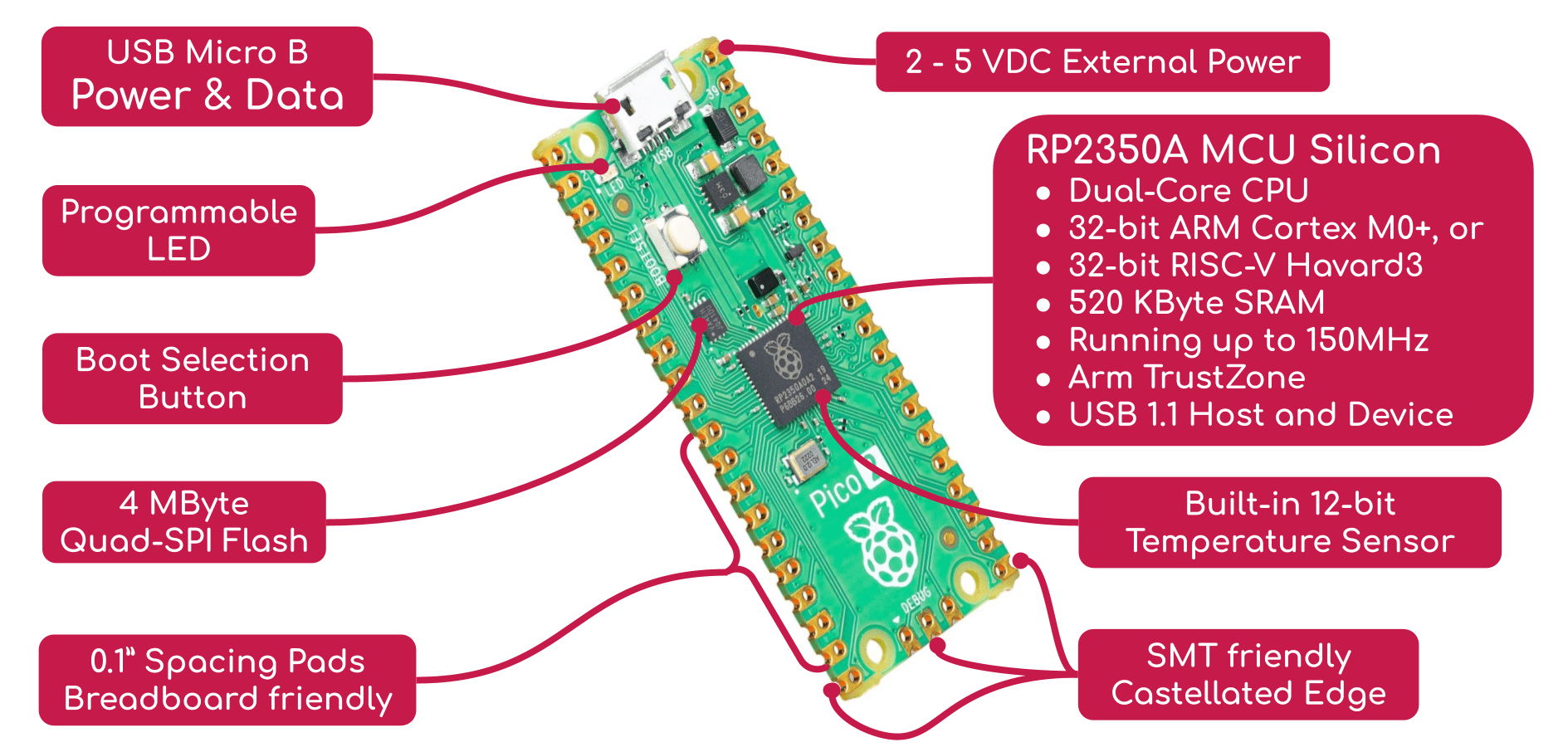

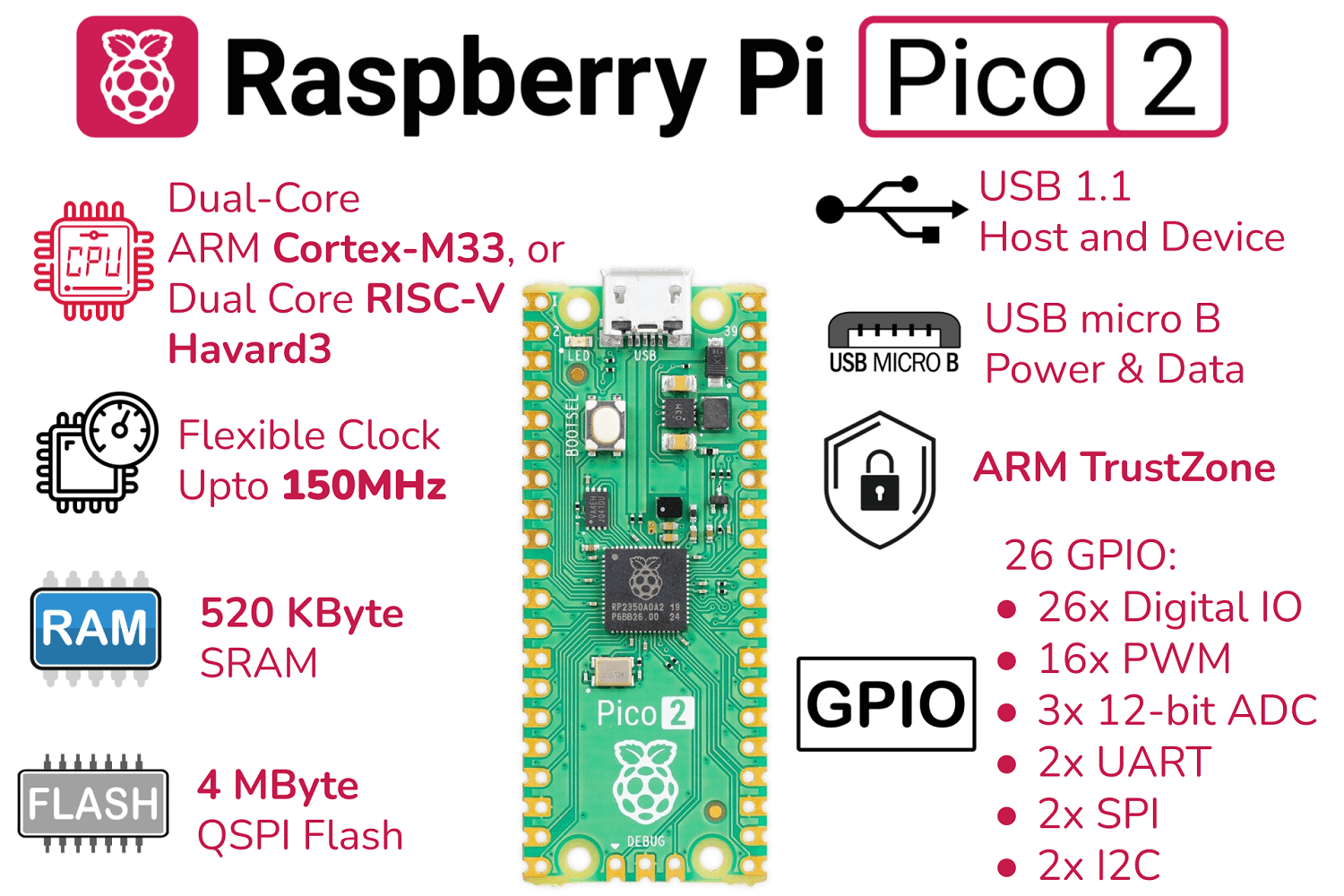

Note: This is Raspberry Pi Pico 2, the new MCU board from the Raspberry Pi that is based on the latest RP2350. Note: As one of the Raspberry Pi RP2350 Launching Partners, Cytron Technologies has developed and produced two innovative products based on the new microcontroller.
- Enhanced version of Raspberry Pi Pico, officially from Raspberry Pi
- RP2350A MCU designed from the ground up by engineers of the Raspberry Pi Team
- CPU: (either) Dual ARM Cortex-M33 Cores Dual RISC-V Hazard3 Cores
- System clock up to 150MHz
- SRAM: 520KByte
- 4MByte QSPI Flash Memory
- Comprehensive Security: ARM TrustZone Optional boot signing, enforced by on-chip mask ROM, with key fingerprint in OTP Protected OTP storage for optional boot decryption key Global bus filtering based on ARM or RISC-V security/privilege levels Peripherals, GPIOs, and DMA channels individually assignable to security domains Hardware mitigations for fault injection attacks Hardware SHA-256 accelerator
- XIP v2 for better flash memory interface
- Ready with USB Micro B receptor for Power and Data
- Support USB 1.1 Host and Device
- Connected to the USB port and it will appear as USB Mass Storage by default, no driver is needed
- Supports CircuitPython, MicroPython, C and C++, Arduino IDE (coming soon) Programming Language
- Drag and Drop Program loading method, just like moving files in Windows Explorer

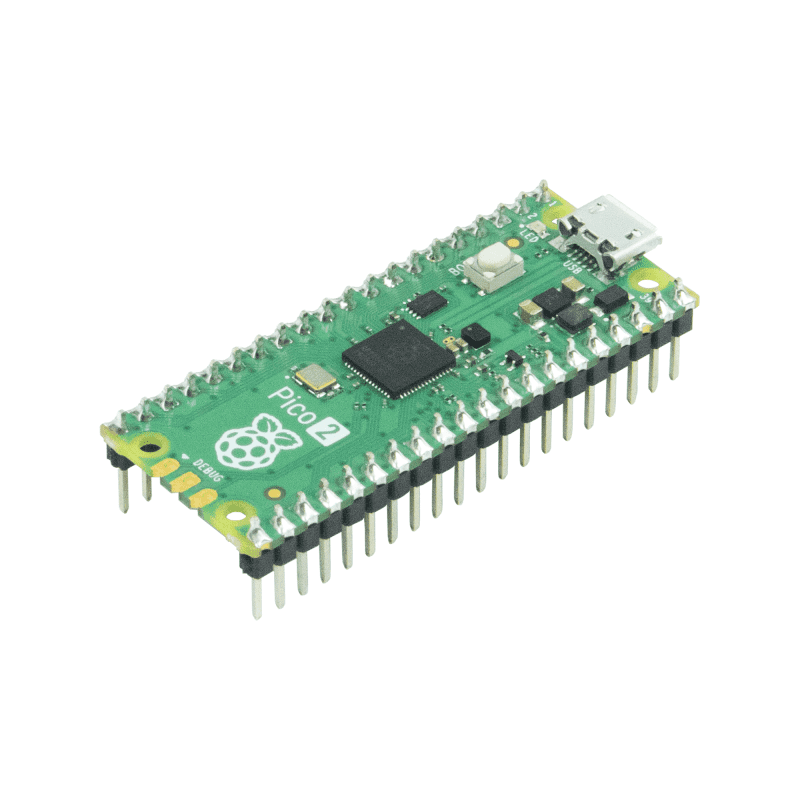

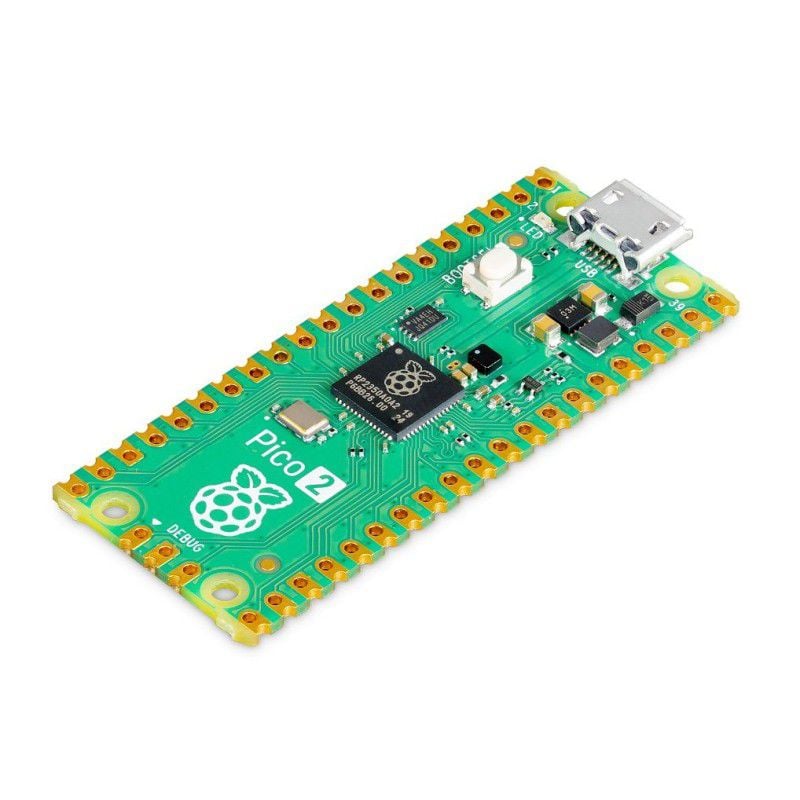

- Comes in 40-pin 21x51 'DIP' style 1mm thick PCB with 0.1" through-hole pins, breadboard-friendly
- With the edge castellations PCB, it is ready to be mounted on another PCB without an additional header pin, SMD-friendly
- Two options: Comes with PRE-SOLDERED header pins (by Cytron Technologies), breadboard-friendly Comes without header, SMD-friendly
- Peripheral rich: Extended out 26 multifunction 3.3V General Purpose I/O (GPIO) 23 GPIO are digital-only 3 x 12-bit ADC capable of 500Ksps, Analog to Digital Converter 2 x UART (Universal Asynchronous Receiver/Transmitter) 2 x SPI (Serial Peripheral Interface) 2 x I2C (Inter IC) 16 x PWM (Pulse Width Modulation) 3 x Programmable IO (PIO) blocks, 12 PIO pins that can emulate high-speed interfaces such as SD card or VGA Built-in 12-bit ADC temperature sensor
- 3-pin ARM Serial Wire Debug (SWD) port
- Onboard Programmable LED, GP25
- Simple yet highly flexible power supply architecture Support USB power, external supply (2 - 5VDC), or battery power.
- Comprehensive SDK, software examples, and documentation
- Officially from Raspberry Pi
- Operating Temperature: -20ºC to +85ºC
- Compatible with any computer with a USB port, Windows, macOS, Linux
- Work seamlessly with Raspberry Pi 5, Raspberry Pi 4 Model B, or Raspberry Pi 400 and Raspberry Pi OS
- Dimensions: 51mm x 21mm x 1mm
