Product Details
SALE In Stock
SKU: 9DC9DF46Raspberry Pi Pico 2 Wireless
Premium quality product with exceptional value
$20
Price includes taxFree shipping available
Note: This is Raspberry Pi Pico Wireless, the 1st MCU board from Raspberry Pi with wireless. Note: There are two options: (please choose your preference) Raspberry Pi Pico WH with PRE-SOLDERED male headers by Raspberry Pi, and it is breadboard friendly, plug and use! Raspberry Pi Pico W without header, SMD friendly

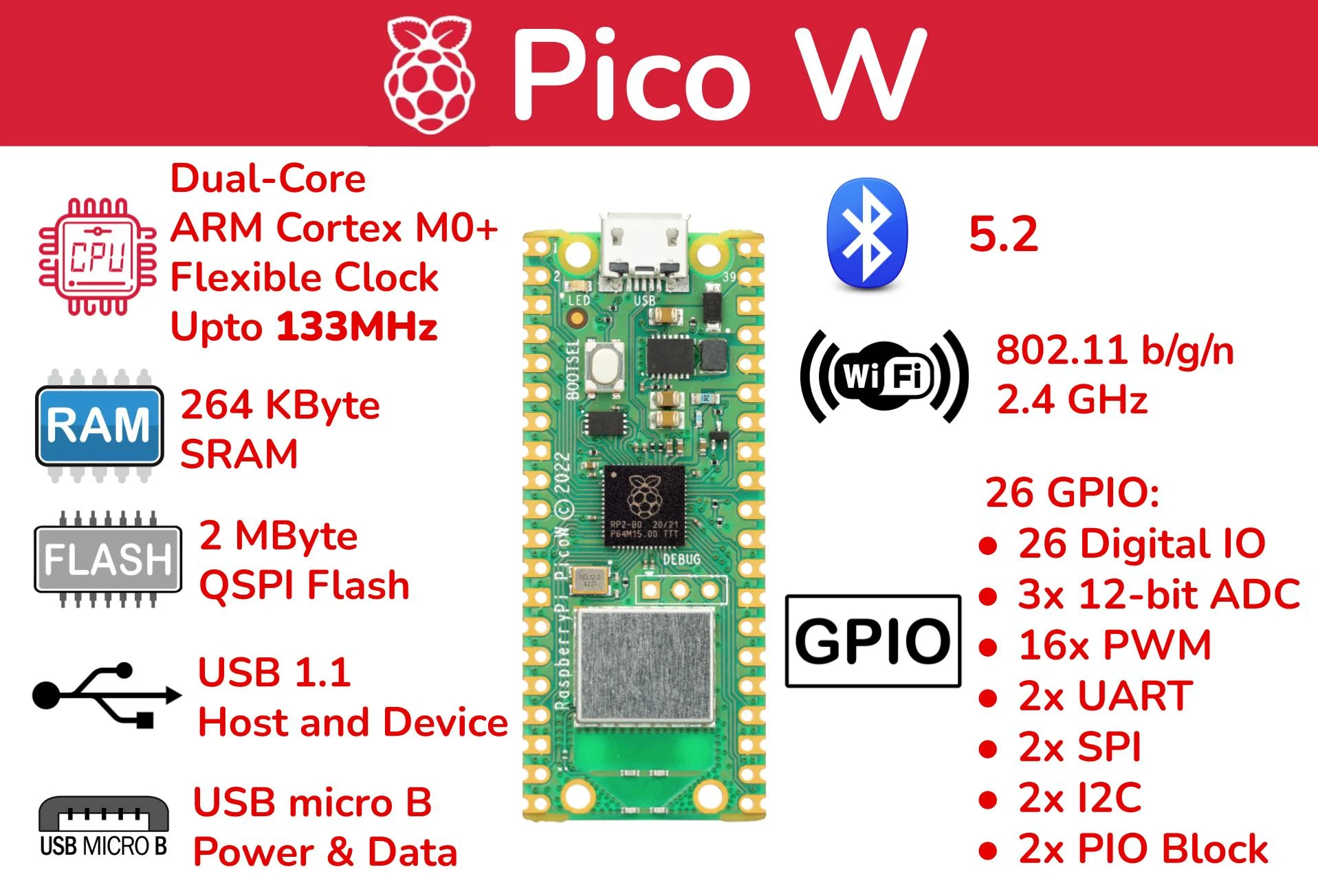

- Wireless version of Raspberry Pi Pico

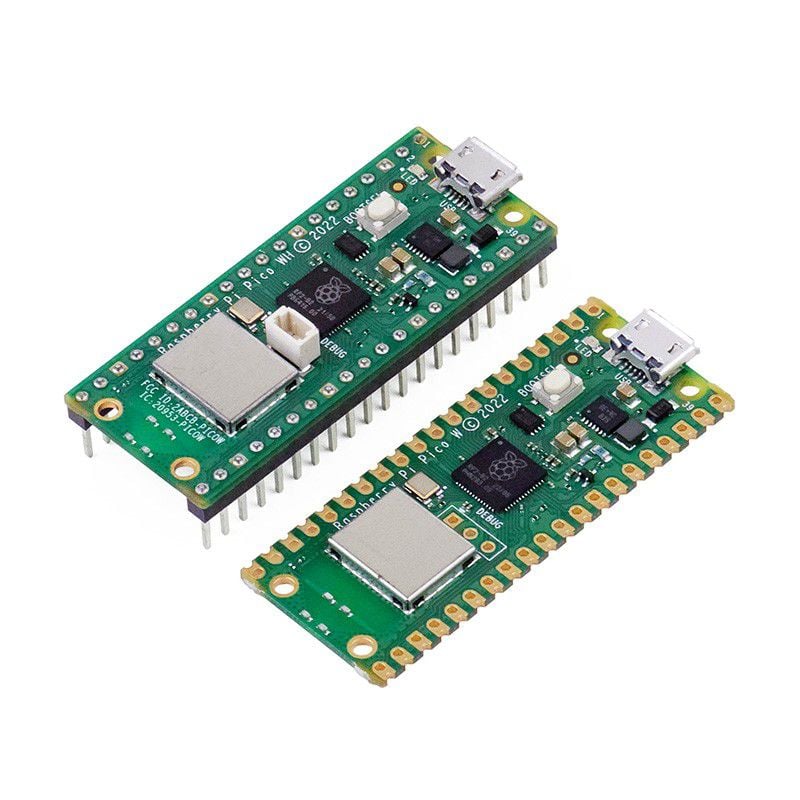

- Two options: Pre-soldered with Headers, official from Raspberry Pi SMD-friendly version (without headers)
- 1st Microcontroller Development Board with Wireless from Raspberry Pi Foundation
- 1st Silicon (IC), RP2040 MCU designed from the ground up by engineers of Raspberry Pi Foundation
- Built-in CYW43439, offers Wireless LAN (WiFi) IEEE 802.11 b/g/n (2.4GHz), and Bluetooth 5.2 (not supported during launch)
- Onboard PCB Antenna
- Dual-Core, 32-bit ARM Cortex M0+ Processor
- Flexible clock, configurable max to 133MHz
- Ready with USB Micro B receptor for Power and Data
- Support USB 1.1 Host and Device
- Connected to the USB port and it will appear as USB Mass Storage by default, no driver is needed
- Supports CircuitPython, MicroPython, C, and C++ Programming Language
- Drag and Drop Program loading method, just like moving files in Windows Explorer
- Comes in 40-pin 21x51 'DIP' style 1mm thick PCB with 0.1" through-hole pins, breadboard-friendly

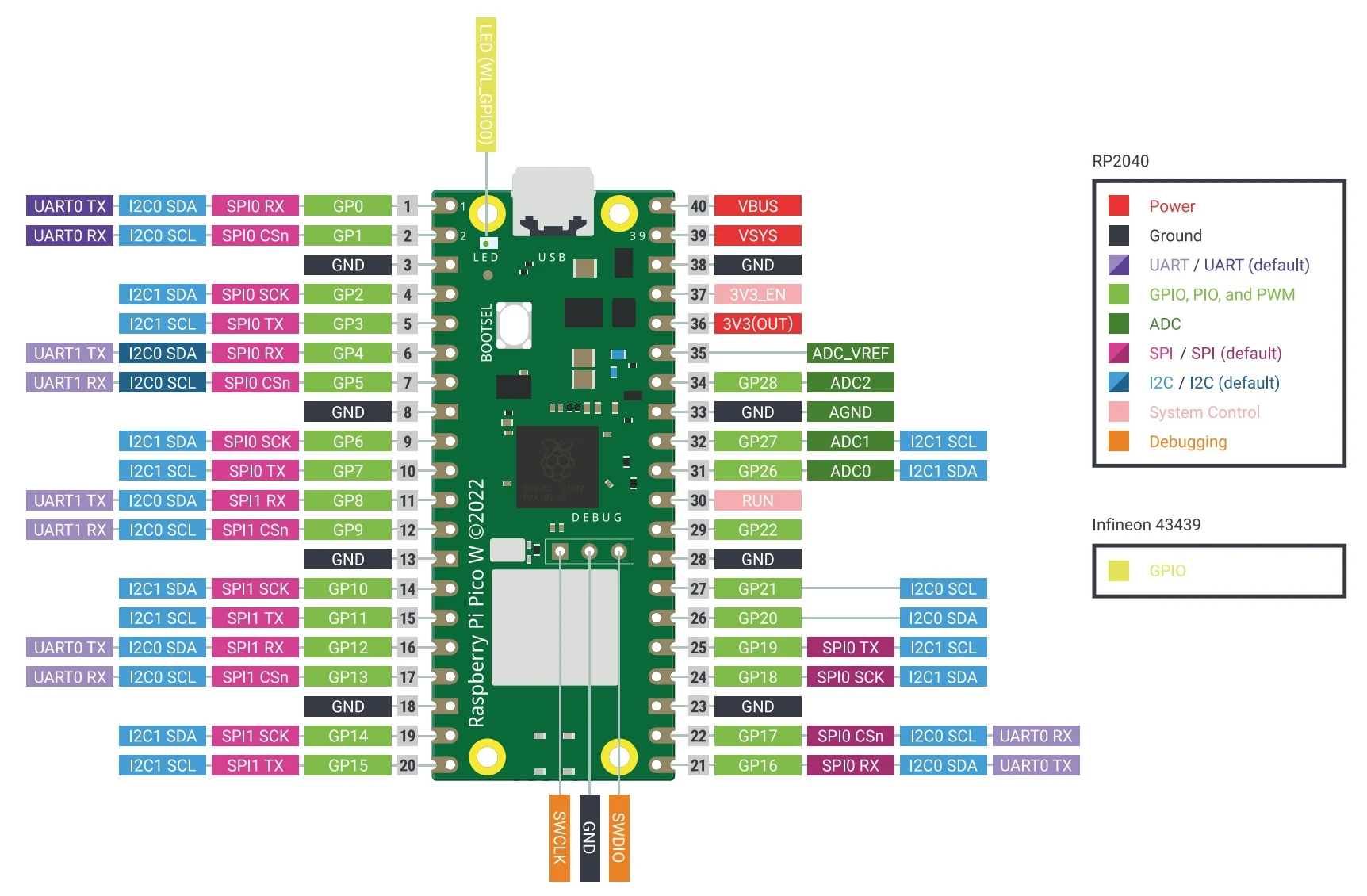

- Peripheral rich: Extended out 26 multifunction 3.3V General Purpose I/O (GPIO) 23 GPIO are digital-only 3 x 12-bit ADC capable of 500Ksps, Analog to Digital Converter 2 x UART (Universal Asynchronous Receiver/Transmitter) 2 x SPI (Serial Peripheral Interface) 2 x I2C (Inter IC) 16 x PWM (Pulse Width Modulation) 1 x Timer with 4 alarms 1 x Real Time Counter 2 x Programmable IO (PIO) that can emulate high-speed interfaces such as SD card or VGA Built-in 12-bit ADC temperature sensor
- 3-pin ARM Serial Wire Debug (SWD) port
- Onboard Programmable LED
- Simple yet highly flexible power supply architecture Support USB power, external supply, or even battery power.
- Comprehensive SDK, software examples, and documentation
- Officially from Raspberry Pi Foundation
- Compatible with any computer with USB port, Windows, macOS, Linux
- Work seamlessly with Raspberry Pi 4 Model B, or Raspberry Pi 400 and Raspberry Pi OS
- Dimensions: 51mm x 21mm x 1mm
