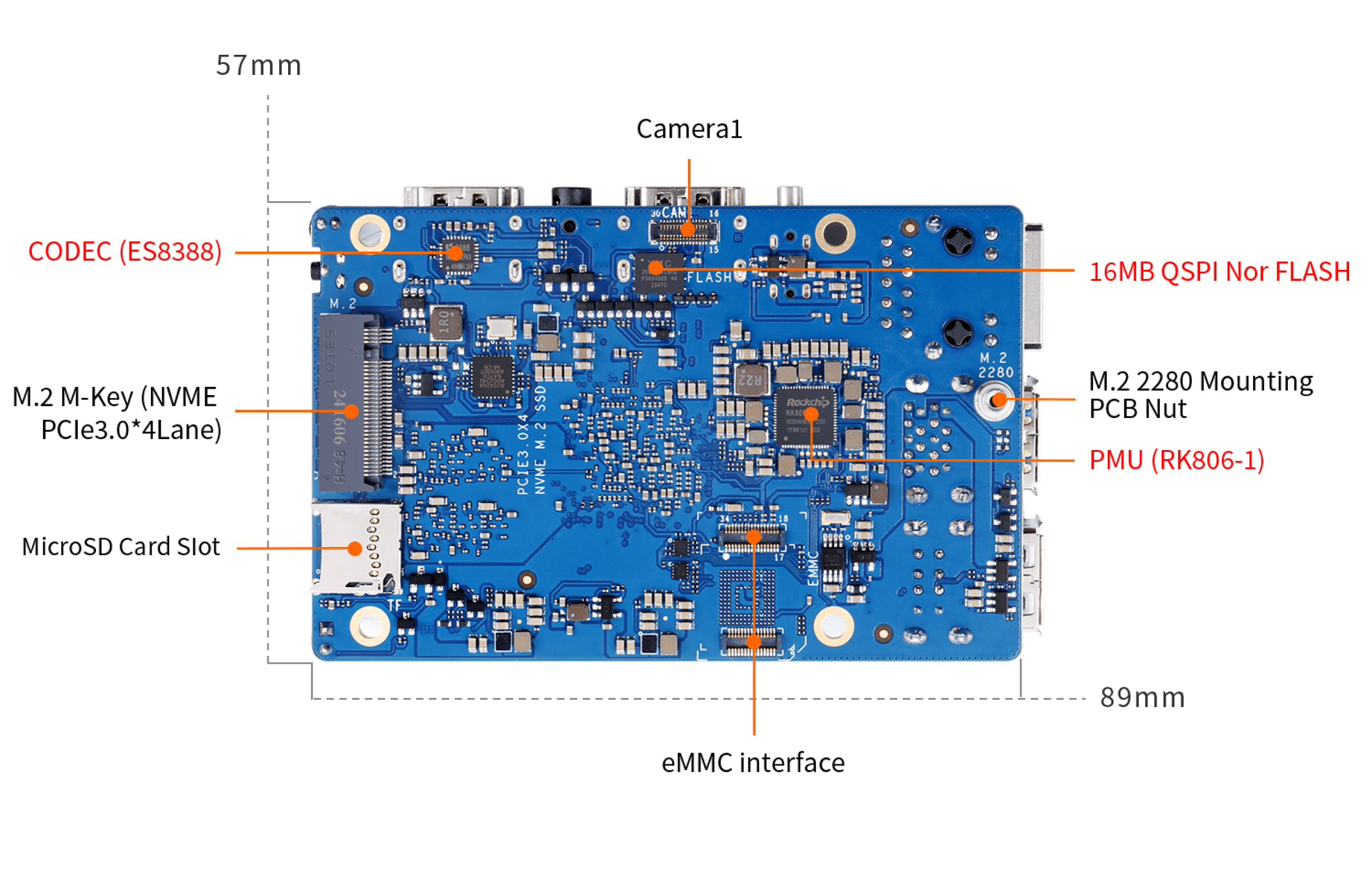

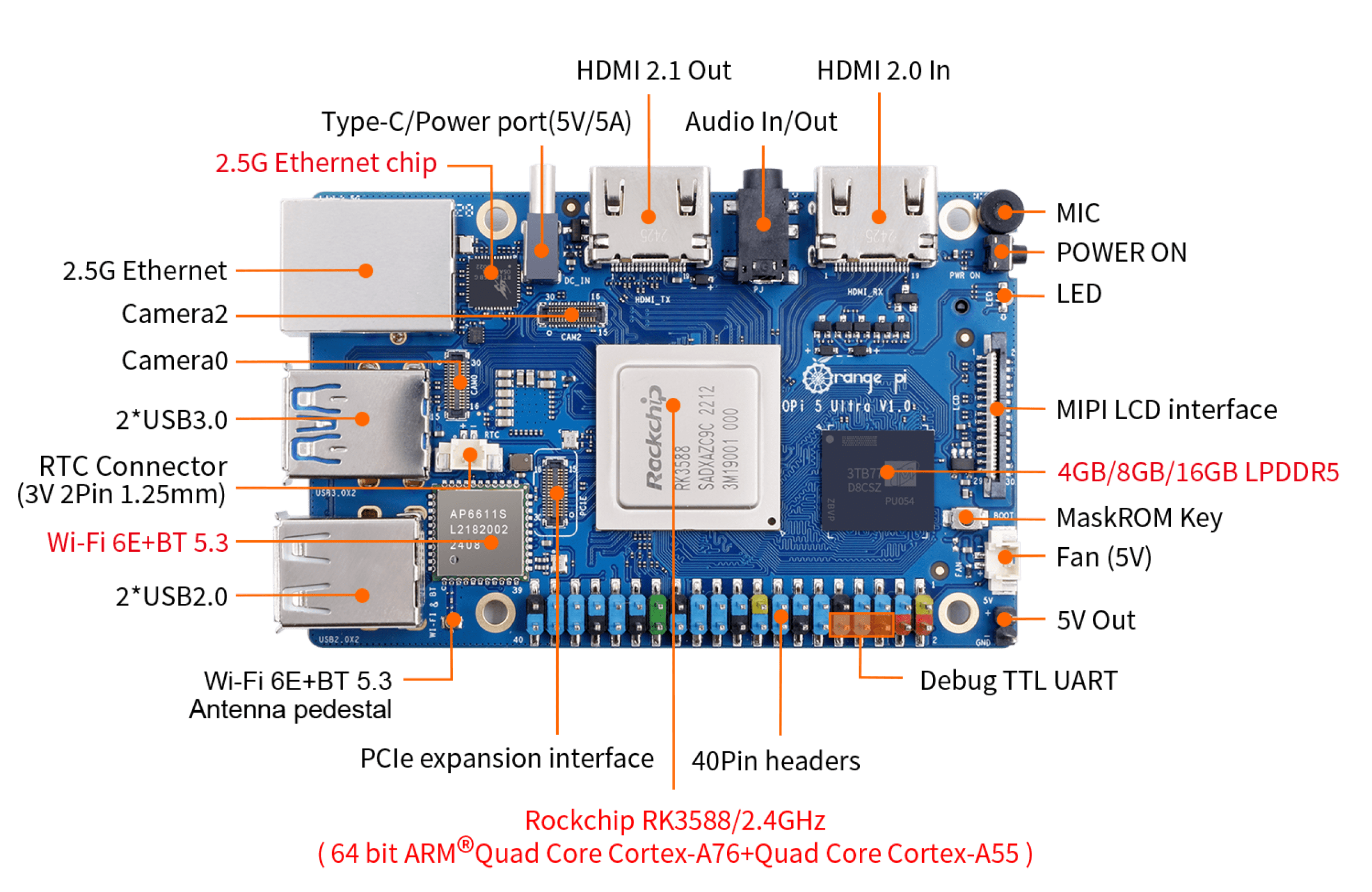

CPU• 8-core 64-bit processor • 4 Cortex-A76 and 4 Cortex-A55 with independent NEON coprocessor • Cortex-A76 at 2.4GHz, Cortex-A55 at 1.8GHzGPU• Integrated ARM Mali-G610 • Built-in 3D GPU • Fully compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2.NPUEmbedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS.PMURK806-1RAM LPDDR5 496PIN：4GB、8GB、16GB optionalMemory• eMMC flash socket • eMMC IC Note: Either eMMC flash socket or eMMC IC, support: 32GB, 64GB, 128GB, 256GB optional • QSPI nor flash: 16MB • MicroSD card slot • M.2 M-KEY slot: support NVMe SSD (PCIe 3.0 4Lane)USB2*USB3.0；2*USB2.0；Video• 1* HDMI 2.1 out up to 8k@60FPS • 1* HDMI 2.0 in up to 4k@60FPS • 1* MIPI DSI TX 4 LaneCameraCODEC：ES8388 • 1* Audio 3.5mm jack with mic • 1*MIC In • 1*HDMI 2.1 eARCEthernet1*PCIe 2.5G LAN（RTL8125BG )Wi-Fi+BT ModuleOnboard Wi-Fi 6E+BT 5.3/BLE module: AP6611 Wi-Fi interface: SDIO3.0 BT interface: UART/PCMExpansion PortDual-row pin: 2.54mm 40Pin Supports DC 5V and 3.3V power output Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.Button1* MaskRom key, 1 * On/Off keyPower SourceSupports Type-C power supply, 5V @ 5ALEDRGB LED side IlluminationFAN5V 2PIN 1.25mm socketRTC3V 2PIN 1.25mm socketDebuggingDebug serial UART included in 40PIN expansion portSupported OSOrangepi OS（Droid）、Orangepi OS（Arch）、Orangepi OS（OH）、Ubuntu、Debian、Android13PCBLength: 89mm, width: 57mm, thickness: 1.6mmWeight60.5g
