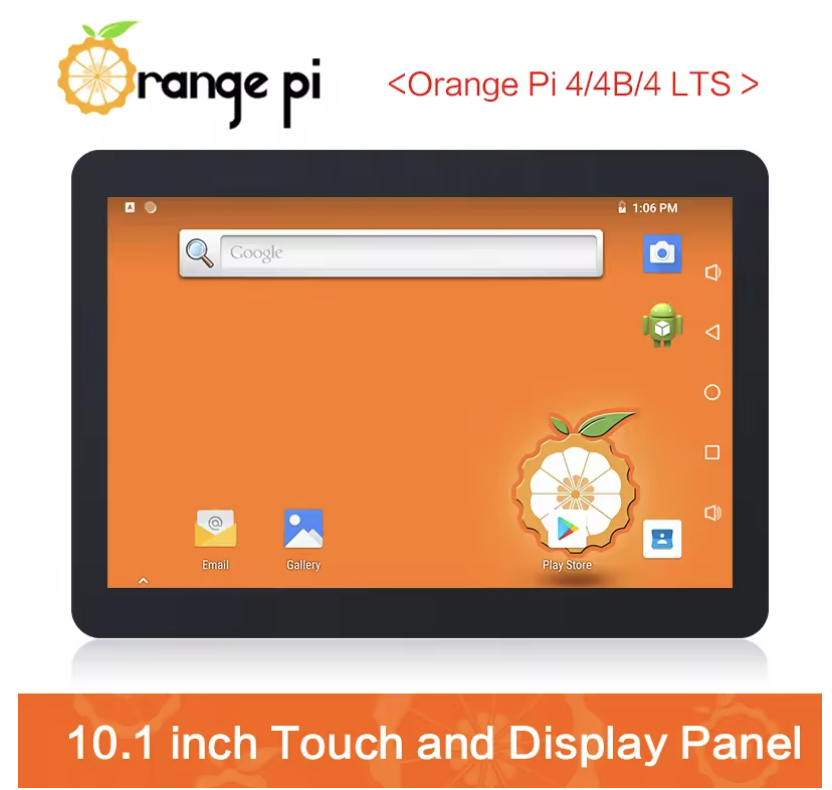

SKU: 9DC9E718Orange Pi Touch Screen (For Orange Pi 4/4B/4 LTS/5)
Premium quality product with exceptional value
$60
Price includes taxFree shipping available

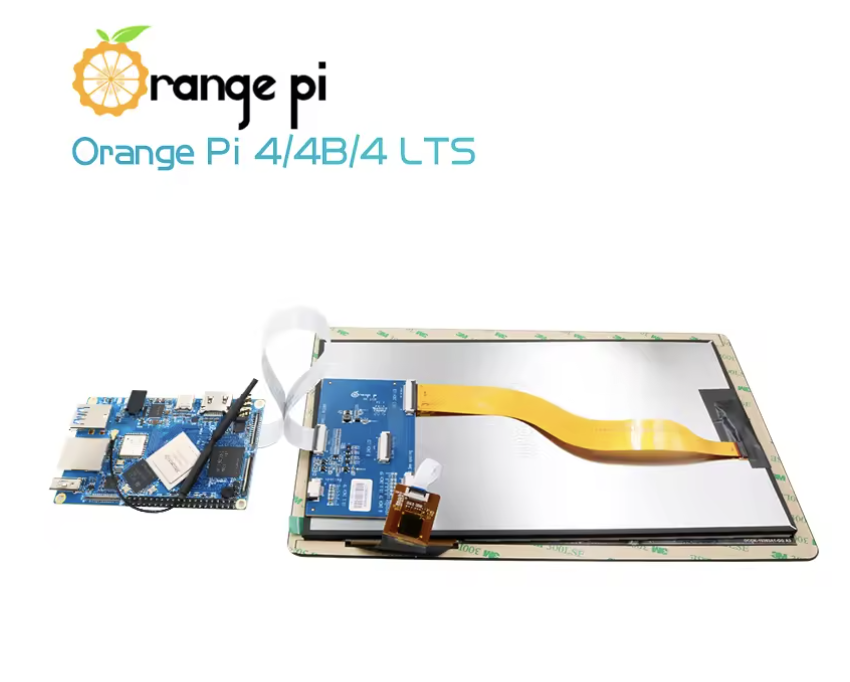

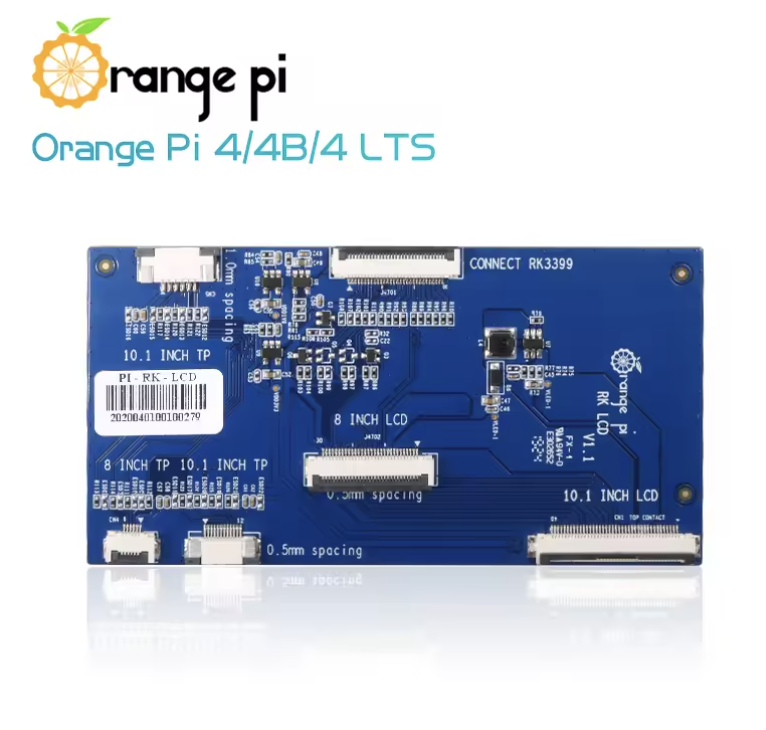

10.1" screen including TFT LCD and capacitive touch screen, hardware resolution is 800x1280 Support screen brightness control by software PWM Refresh rate up to 60Hz through MIPI DSI interface driver Support Orange Pi 4/4B/4 LTS/5 development board, need to use with adapter board
- Panel Size: 10.1"
- Number of Pixels: 800×RGB (3)×1280
- Active Area: 135.36(H)x216.576(V)
- Outline Dimension: 143(W)×228.6(H)×2.7(D)
- Number of Colors: 16.7M
- Viewing Direction: ALL
- Luminance (cd/m^2): 250(TYP.)
- Interface: MIPI
- Backlight: 27-LEDs (White)
- Operation Temperature: 0~50
- Storage Temperature: -10~60
- Weight: TBD
- Source IC: ILI9881C
